Configuration via MEX

Using the Fraud tab

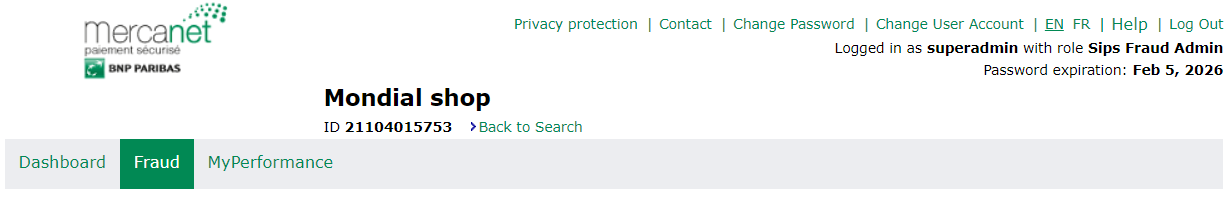

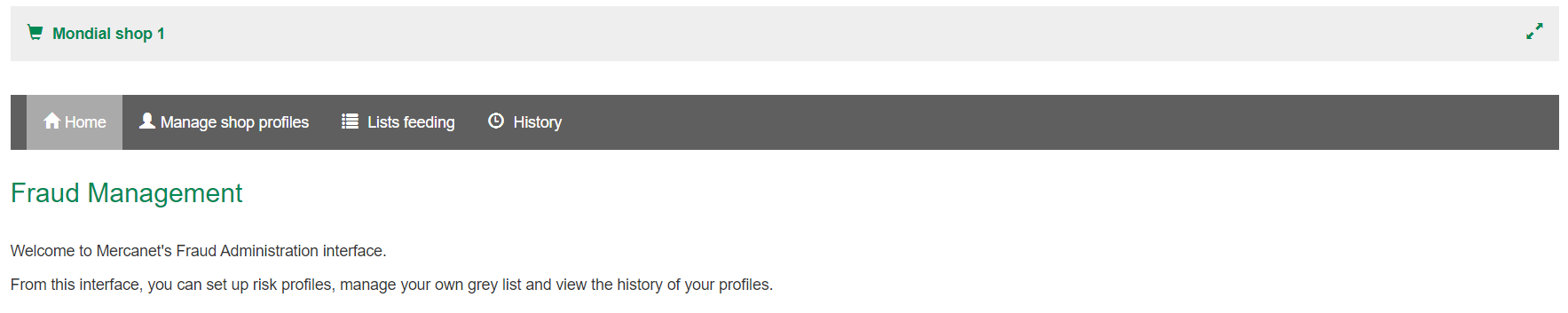

Click on the Fraud tab to get access to the antifraud profile management tool homepage.

Attention: if a message indicates access rights issues, contact the support team to have the fraud risk management option activated on your webshop.

You can select the language of your choice (EN, FR) in the top-right corner.

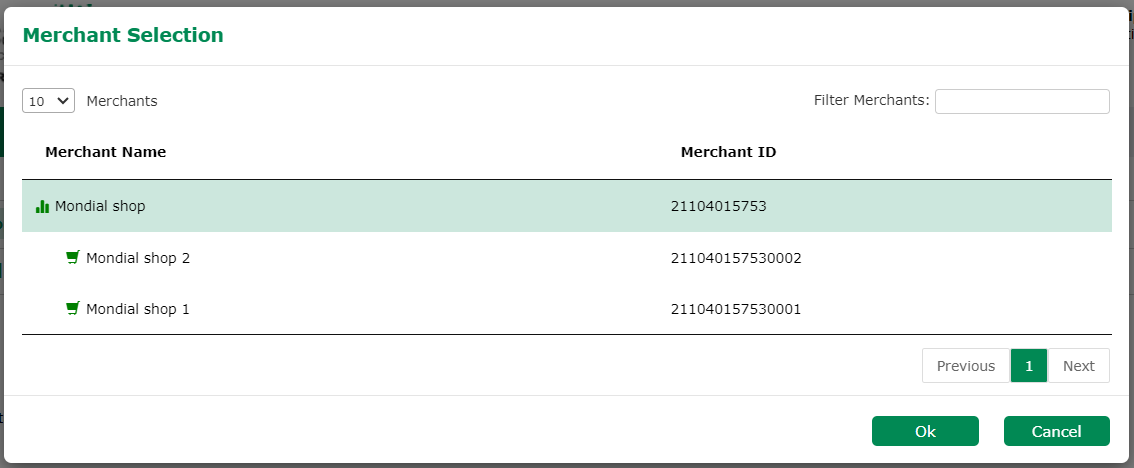

Webshop list

The top-hand part of this page contains the list of webshops you have access to.

You can extend this section to select another webshop by clicking on the show the shops list (top right corner) icon.

Attention: when a shop is selected, this part is automatically collapsed.

A data entry field at the top of this area makes it possible to filter webshops using all or part of their names or ID.

Click on one of the webshops to select it and display its profiles.

Main part

The menu at the top of this part enables you to access the features for administering the profiles and lists of the selected webshop.

Tip: at various places in the interface, you will be able to click on info

buttons that will give you access to detailed information about the elements located next to them.

Attention: rights management

The actions you can take depend on the role(s) assigned to your Merchant Extranet profile.

Administering antifraud profiles

Click on Manage shop profiles in the menu bar to access this section.

Profile list

The homepage of this section provides an overview of the webshop profiles in the form of a list.

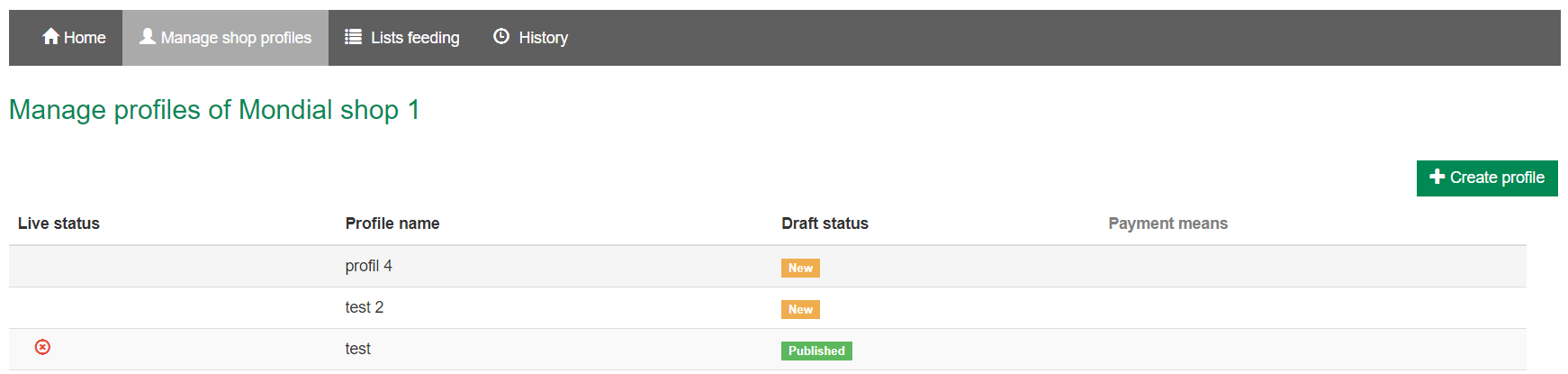

image showing the list of profiles in the shop

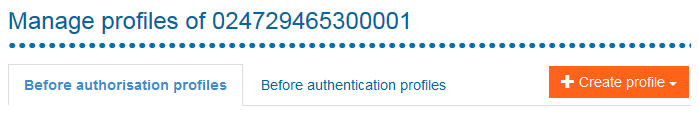

If you have subscribed to the option to use the antifraud controls before the authentication, then a tab bar allows you to switch between the before authentication profile list and before authorisation profile list:

The Live status column shows whether the profile is active or not.

profile is inactive

profile is active

The live status of a profile is inactive:

if the profile has never been published
if the profile has been deactivated manually
or if the profile has been automatically deactivated by the activation of another profile that conflicts with the associated means of payment.

Tip: active default profile

For the distributor's profile not to be used, it is preferable to always have an active default profile.

The Draft status column shows whether the profile is active or not:

Status	Publication status
	The profile has been created but never published.
	The profile has been published and is used to evaluate transactions if it is active (see above).
	The profile has been modified since it was last published. It must be republished for the changes to be taken into account for transaction evaluation. Important : this does not affect the functioning of the published version of the profile, which continues working the same way as before.

Attention: working version and published version

A profile consists of two entities: a working version and a published version.

The work version is one that you can modify and save as much as you like without any effects on the webshop transactions. It can be considered as a profile draft. When a new profile is created, it is actually a working version.

Once you are satisfied with the changes made to the working version, you can publish it to create the published version. This version of the profile is used to evaluate transactions.

A profile must therefore be both active and published in order to be applied. An active profile with a status "To be republished" status will not apply.

The Payment means column shows the means of payment associated with a profile.

Profiles can be customised for specific means of payment. This column summarises them.

The means of payment over a coloured background are those associated with the published version of the profile.

The means of payment over a grey background are those that are only present in the working version, and which are thus inactive for transaction evaluation.

In the following example, Mastercard and Visa are associated with the published profile and CB is only in the working version:

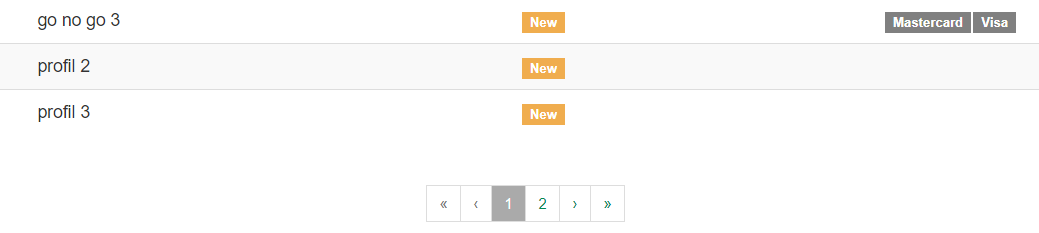

You can click on the blue column header to sort the list according to the criterion.

Clicking on a profile of the list enables you to view and edit the details of its configuration.

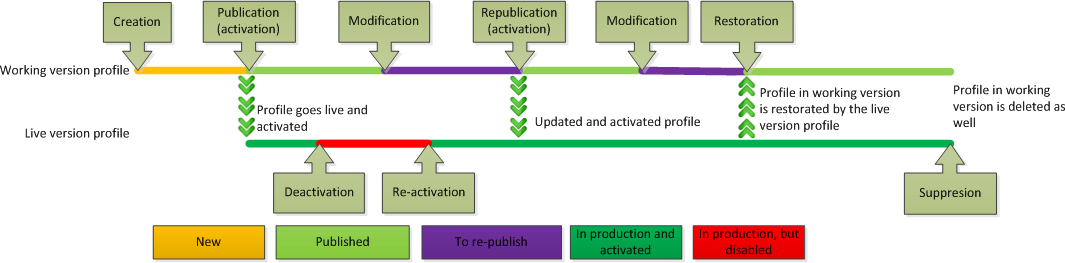

Profile life cycle

Example of a profile life cycle:

Creating a profile

Click on the button to create a new profile. The creation options are as follows:

Go-No-Go profile
If this option is authorised by the distributor, select the Go-No-Go profile option in the Create profile menu-button list. You will be given access to the new profile creation page.

or

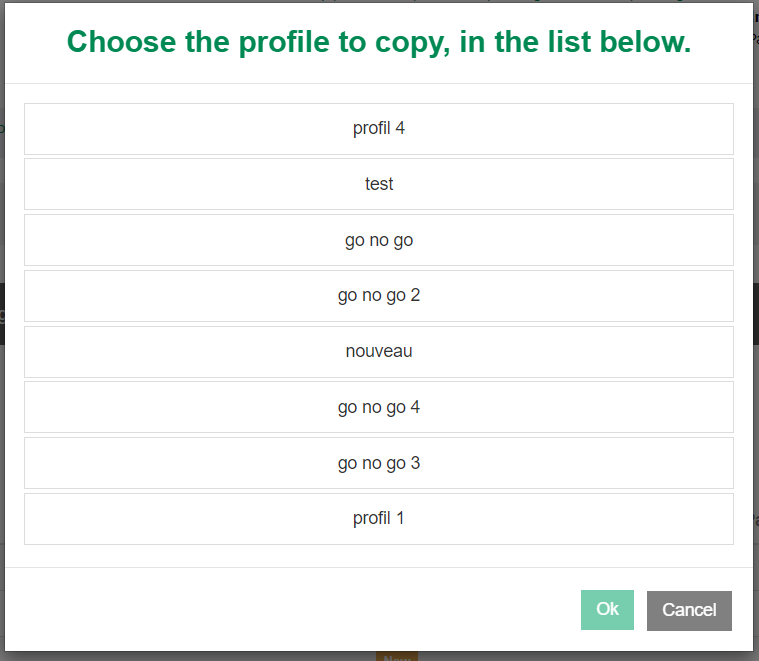

Select Copy existing to create a new profile from a profile already existing in the webshop. A new window will pop up and let you choose the profile to be copied.

Having chosen the profile to be copied, you will get access to the profile creation page.

or

From a profile template
As with copying an existing profile, a popup window allows you to choose, from a list of available profile templates, the one that will serve as the basis for the new profile created.

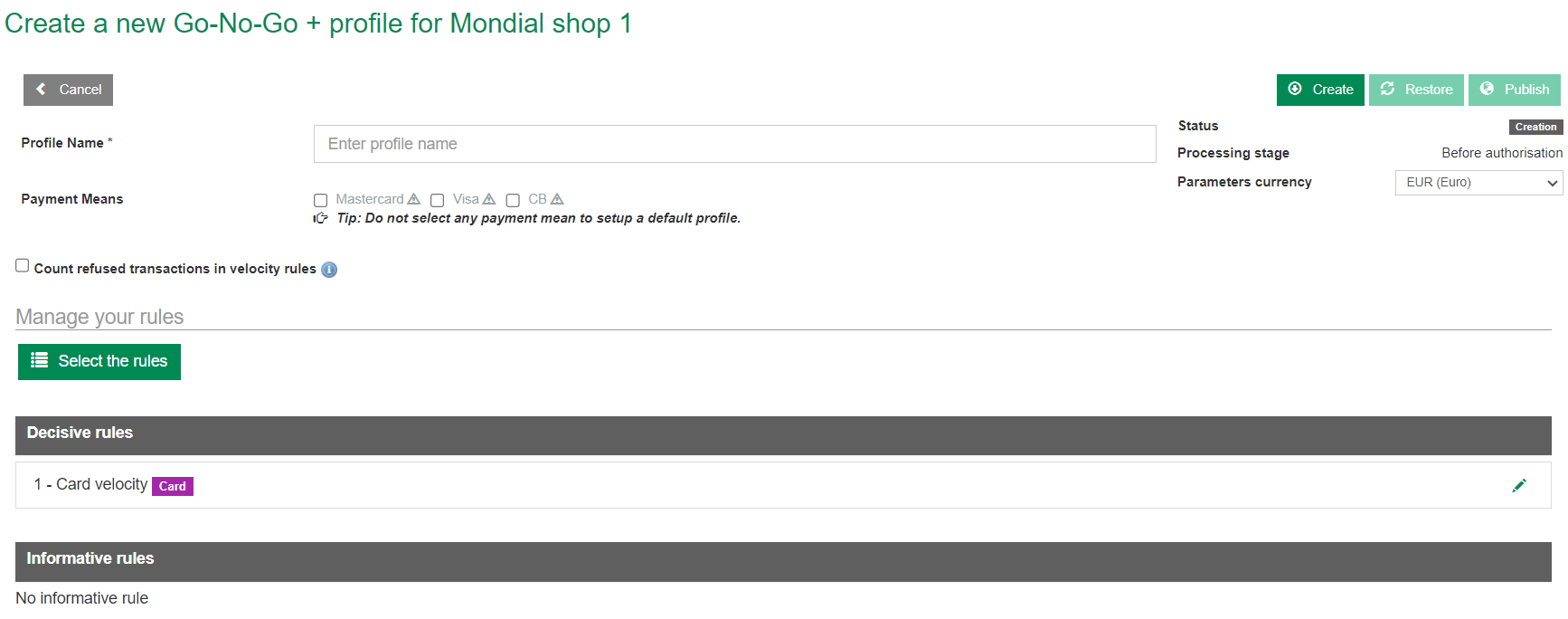

You will then be taken to the profile creation page:

Profile name:
The profile name must be unique for a given webshop and can consist of a maximum of 30 characters among the following: A-Z, a-z, 0-9, _ (underscore) and space.

Means of payment:
You can choose whether the profile must apply to one or more specific means of payment. Check the boxes of the required means of payment. The list of the available means of payment depends on the contracts that are active on the webshop and configured in the Merchant Extranet.
Tip: default profiles
If the profile must apply to all means of payment, it is a default profile; therefore, there is no need to check anything.
The fact that a means of payment of the list is greyed out and tagged indicates that it is already selected in another profile. You can still check it if you wish. It will then be removed from the other profile. A warning message is displayed to remind you of this when you check the means of payment:

Attention: only one profile for a given means of payment
Only one active profile can be associated with a given means of payment. The configuration interface guarantees this by automatically deleting the means of payment from the other profiles if there is a conflict with a newly edited profile. At the time of its publication, this profile will be fully associated with the means of payment concerned.

Count refused transactions in velocity rules
Check this option to account for refused transactions in the counters (in addition to accepted transactions).

Parameters currency
If a webshop has contracts that involve means of payment in multiple currencies, you can choose, in the details of a rule, the currency that is used to set amounts.
IMPORTANT: all transactions can be evaluated by a profile regardless of their respective currencies. Indeed, this parameter does not mean in any way that the profile only applies to the transactions the amounts of which are given in the chosen currency.
If the transaction uses a currency other than the one configured in the profile, currency conversion is performed.

Profile rules
The Manage rules section in the creation profile page enables you to choose the rules that must be applied as part of the profile. See the 'Administering rules in profiles' section for further details.

The profile is saved when the user clicks on the create button. At this moment, the profile is not active yet. It will have to be published (see the 'Editing and publishing a profile' section).

The cancel button makes it possible to cancel the creation of the profile and to go back to the webshop profile list.

Editing and publishing a profile

The profile editing page is almost identical to the creation page. In editing mode, the name of the profile cannot be modified.

Profile status
A section on the right-hand side of the page provides details about the status of the profile:

This section includes the status (see the 'Profile list' section), the publication date and the settings currency. The modification date corresponds to the date on which the work version was saved for the last time.

Actions available in editing mode

Action	Description
	Saves the changes made to the working version. This operation does not publish the changes. For this purpose, you will have to use the "Publish" button.
	Restore a profile the working version of which has been modified, in the state it was in the last time it was published. This action is only available if the profile has been published and has been modified ever since (its status is then "To be republished".).
	Deletes an unpublished profile. This action can no longer be accessed from this page if the profile has been published. You will have to view the published version of the profile to delete it.

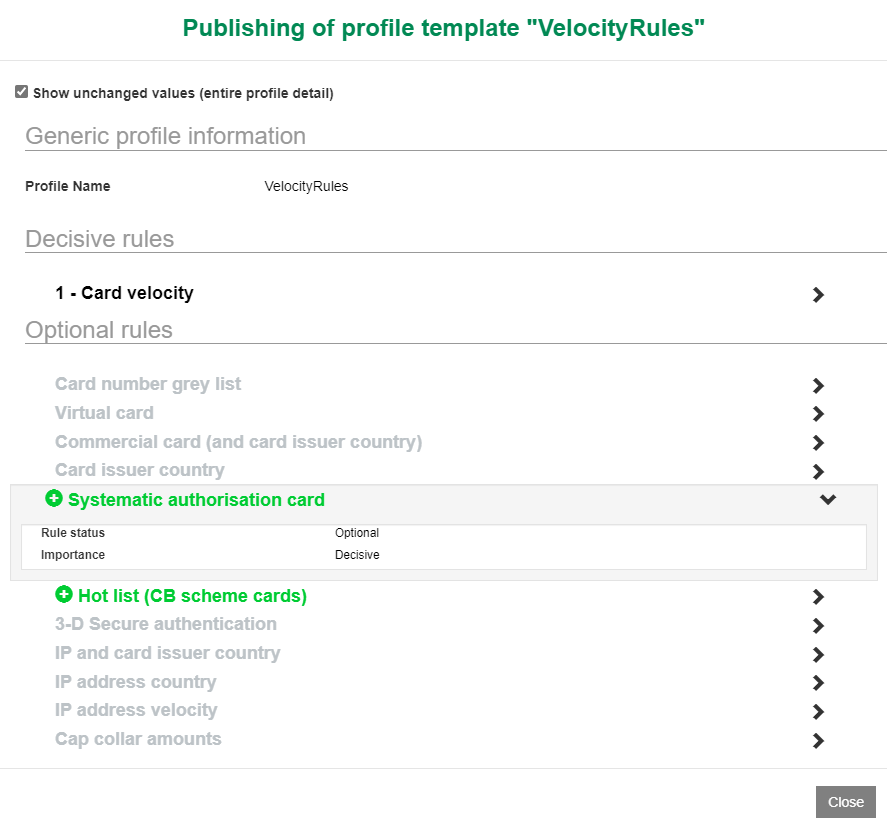

	Publishes the working version of the profile, which is then in effect for transaction evaluation. The orange colour indicates that this action may have consequences on the webshop transactions.

Click on the back button to be taken back to the profile list.

Click on the view live version button to view the published version of the profile if need be.

Viewing a published profile

From the profile editing page, you can view the published version using the view life version button.

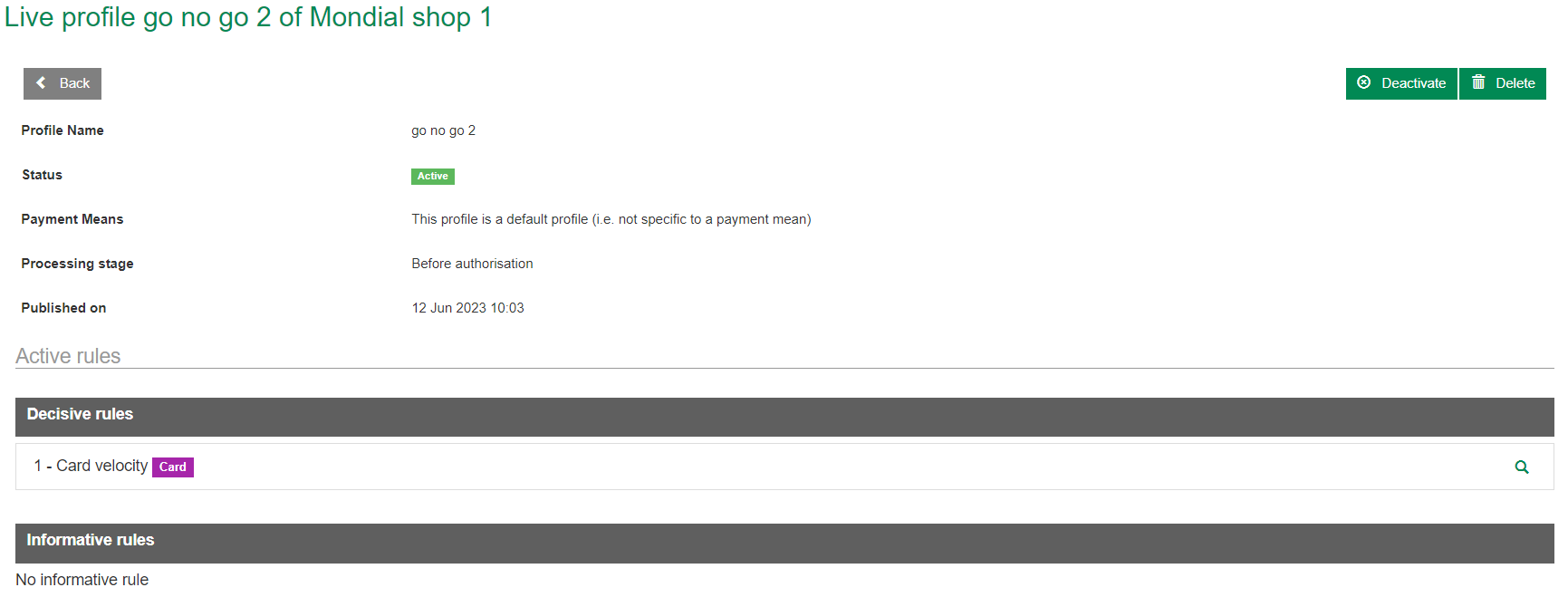

The following page displays:

This screen lets you view the details of the published profile and its rules.

Actions that can be performed on a published profile

Action	Description
	Activates the inactive published profile. This profile will then be in effect for transaction evaluation.
	Deactivates the inactive published profile. This profile will then no longer be in effect for transaction evaluation.
	Deletes a published profile.

The orange colour indicates that this action may have consequences on the webshop transactions.

The back button takes you back to the working version of the profile.

Activating/deactivating a profile

To activate or deactivate a published profile, you must go to the page where you can view its published version:

choose the profile to activate or deactivate in the webshop's profile list
then click on in the profile details
you will then have access to the or button depending on the profile's activation status.

To activate an unpublished profile, you only need to publish it.

Deleting a profile

To delete a published profile, like for activation and deactivation, you must go to the page where you can view the published version of the profile (see the 'Activating/deactivating a profile' section).

You will then be able to delete it using the orange delete button.

To delete an unpublished profile, access its working version (see the 'Editing and publishing a profile' section) then click on the blue delete button.

Administering rules in profiles

Adding or deleting a rule

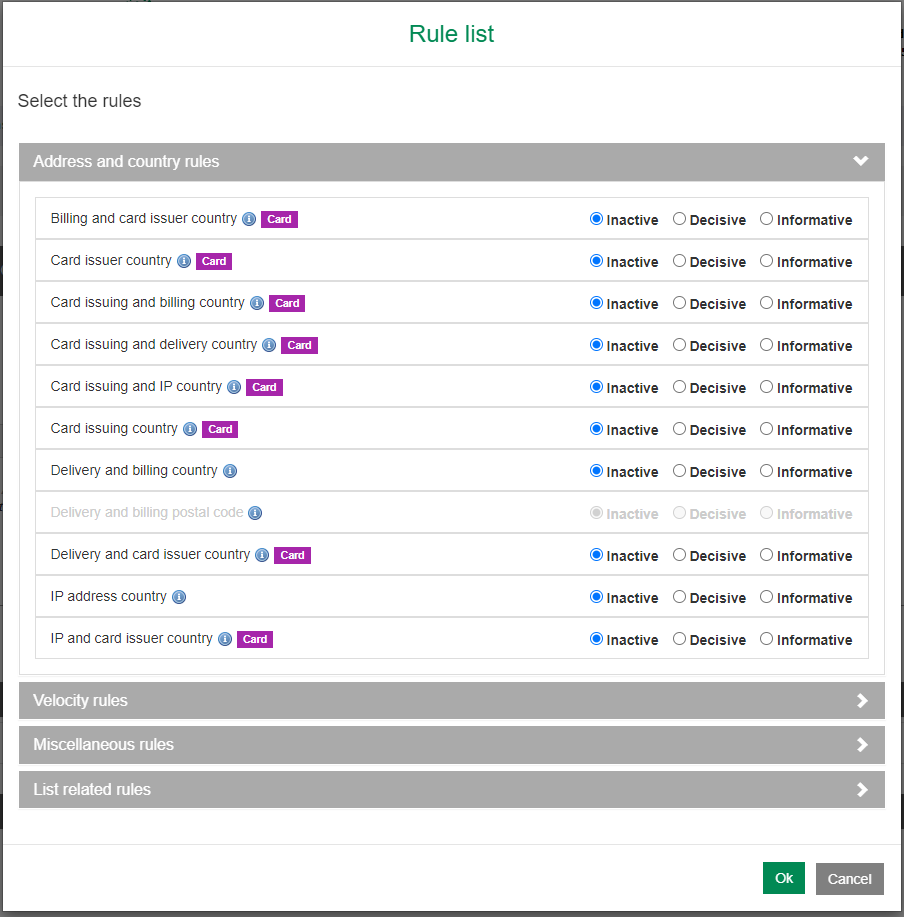

The select the rules button on the profile working version screen (see the 'Editing and publishing a profile' section), displays a pop-up window that makes it possible to activate rules in decisive or informational mode, or to deactivate them:

When you are done with the selection, click on Ok to validate your choices.

Note: please refer to the 'List of rules' section for further details.

Ordering and configuring rules

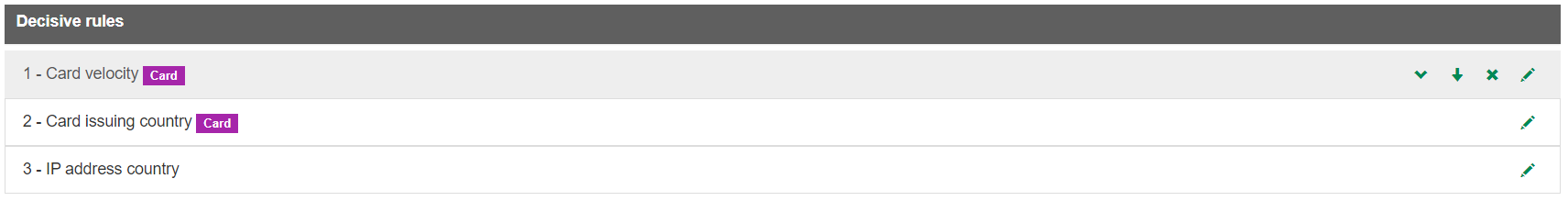

When clicking on the profile rules, you will see buttons that make it possible to perform actions on them.

image of buttons to perform certain actions on these rules

Available actions:

Action	Description
	These buttons make it possible to order the execution of rules.
	This button makes it possible to modify the content of configurable rules if need be.
	Click on this button to delete a rule from the profile without using the rule selection pop-up window.
	This button makes it possible to convert an informational rule into a decisive one.
	This button makes it possible to convert a decisive rule into a informational one.

Please refer to the next sections for detailed rule configuration.

Filtering rules per means of payment

Some rules are related to a given means of payment (ex: SDD) or means of payment type (ex: cards). For instance, the card velocity can only be applied for payment cards (CB, VISA, MASTERCARD, AMEX) and the IBAN velocity can only be applied to a SDD payment.

When configuring the profile, the displayed rules are filtered according to the means of payment to which you subscribed. So if you did not subscribe to a given means of payment or means of payment type, you will not be able to use the rules restricted to it.

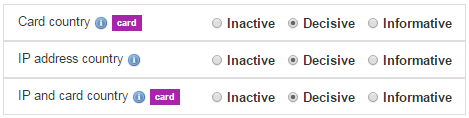

When a rule only applies to a means of payment (type), a label is dispayed next to it:

Configuring geolocation rules: addresses and countries

Card issuer country

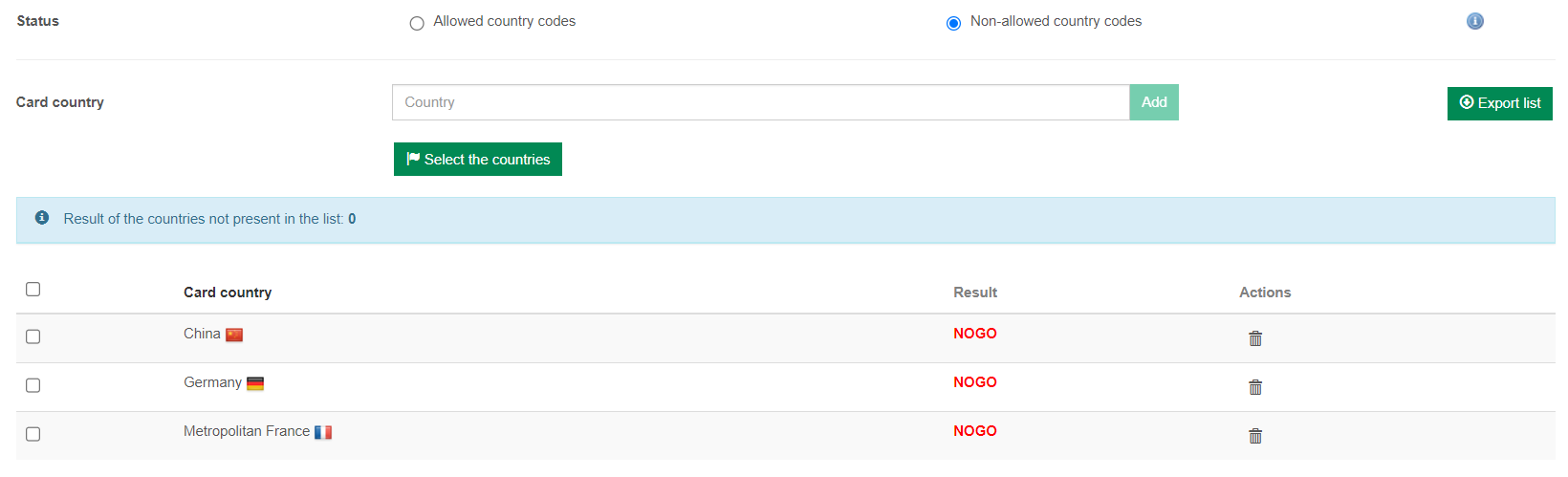

image of the configuration section of the countries allowed or forbidden by the rule

This section makes it possible to configure the list of the countries that the rule authorises or prohibits. This list can be displayed across several pages. The Result field corresponds to the result of the rule for the concerned country.

The Status radio buttons make it possible to specify whether the list that follows is a list of authorised or prohibited countries.

The Card country field makes it possible to add a country to the list by manually entering its name into the field (autocompletion is possible).

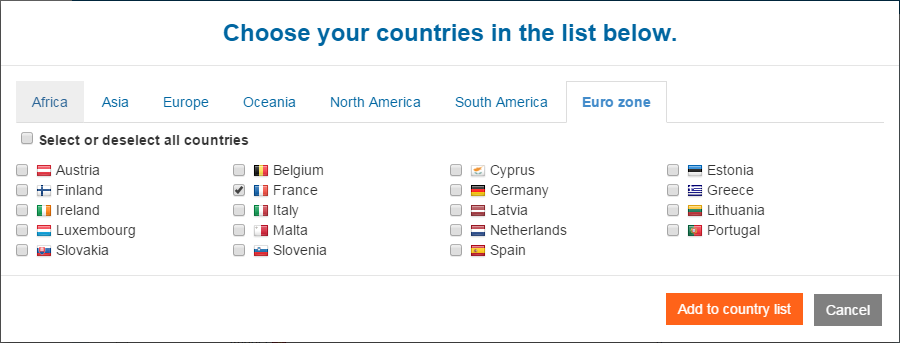

The select the countries button displays a pop-up window that makes it possible to select one or more countries from a list:

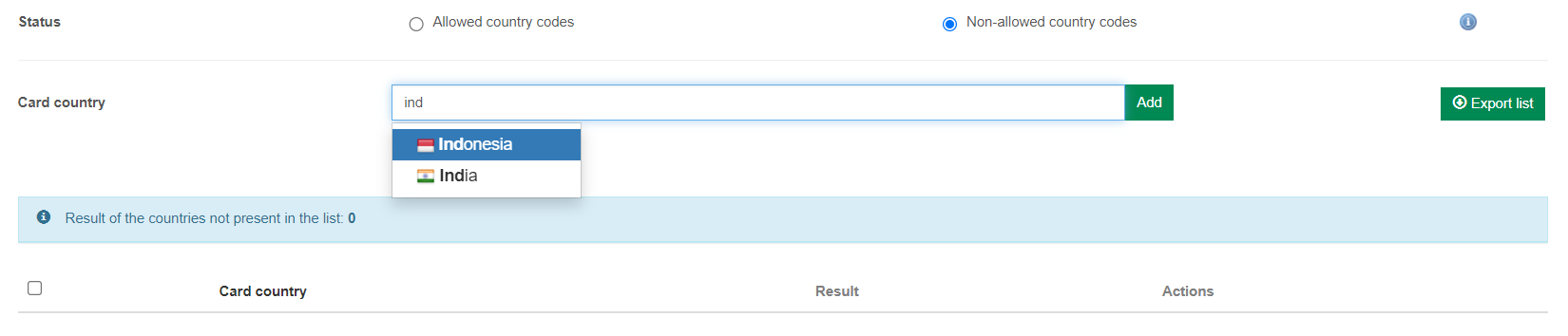

When manual data entry is in progress, the list is filtered accordingly, which makes it possible to see whether the country being entered is already on the list:

You can export the list into a CSV file by clicking on the button. This creates a file which contains all the items of the list and is automatically downloaded via browser.

For more details on the CSV file contents, please refer to the following section: 'Appendix list export file format'.

IP and card issuer country

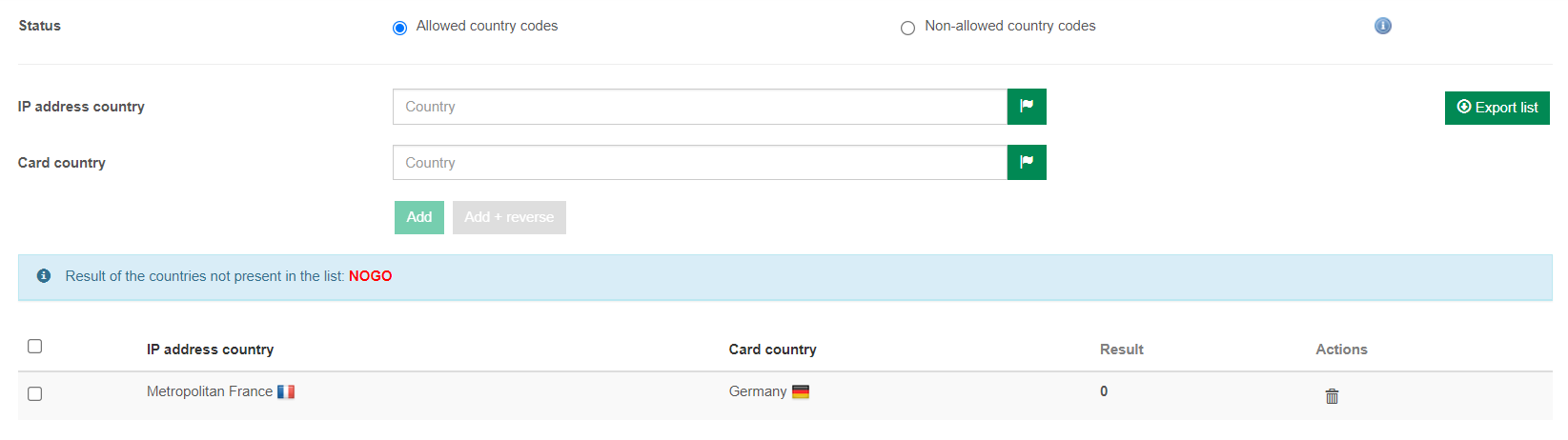

image of the section to configure the countries of the map and the IP address

This section makes it possible to configure the list of the country combinations that the rule authorises or prohibits. The Result fied corresponds to the result of the rule for the concerned country.

The Status radio buttons make it possible to specify whether the list that follows is a list of authorised or prohibited country combinations.

The IP address country field makes it possible to manually enter the IP address country of the combination to add to the list.

You can specify a list of IP addresses right away using the selection pop-up window. This window is accessible through the flag button on the right-hand side of the data entry area. In this case, once the list is selected, "country list" is displayed in the data entry area.

The Card country field makes it possible to specify the card country of the combination to add to the list; it works in the same way as the IP address country field.

After entering the data either manually or through the pop-up window, you must click on the add button to add the selected country combinations to the list.

Alternatively, clicking on the add + remove button makes it possible to add the combinations and their reverse orders to the list. For instance, for the IP address country = France and Card country = Belgium, this button will add France/Belgium and Belgium/France to the combination list.

When manual data entry is in progress, the list is filtered accordingly, which makes it possible to see whether the combination being entered is already on the list. This list can be displayed across several pages.

You can export the list into a CSV file by clicking on the button. This creates a file which contains all the items of the list and is automatically downloaded via your browser.

For more details on the CSV file contents, please refer to the following section: 'Appendix list export file format'.

Other rules

The configuration is done in the same way for many rules:

Configuring velocity rules

Card velocity

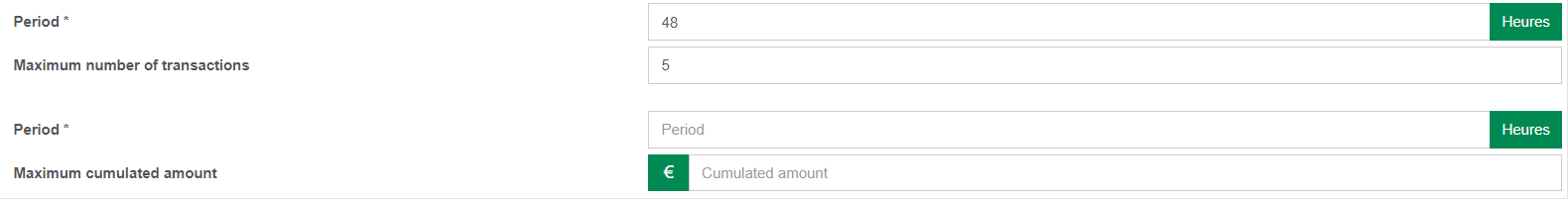

image showing the ruler on the card stock

The Period fields make it possible to specify the periods over which the number of transactions and the amount of transactions are added up for the card concerned. You can specify these times in hours, days or weeks using the hours buttons.

The Maximum number of transactions field makes it possible to specify the maximum number of transactions authorised over the period.

The Maximum cumulated amount field makes it possible to specify the maximum cumulative amount of the transactions over the period. The currency in which the cumulative amount is given is indicated in front of this field.

It is not mandatory to specify both a maximum cumulative amount and a maximum number of transactions. One of the two is enough.

Similarly, it is not mandatory to set the maximum number of transactions and the maximum cumulative amount. The setting of one of the two is enough.

Other rules

The configuration is done in the same way for many rules:

You would like to configure the following rule:	Please refer to the settings of the following rule:
IP address velocity	Card velocity

Configuring miscellaneous rules

Cap collar amounts

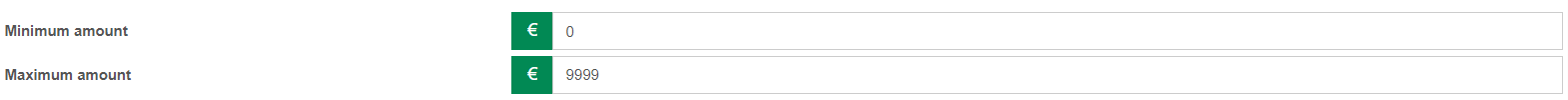

image showing the ruler on a range of amounts

The Minimum amount field makes it possible to specify the authorised minimum amount for a transaction. The currency in which the minimum amount is given is indicated in front of this field.

The Maximum amount field makes it possible to specify the authorised maximum amount for a transaction.

3-D Secure authentication

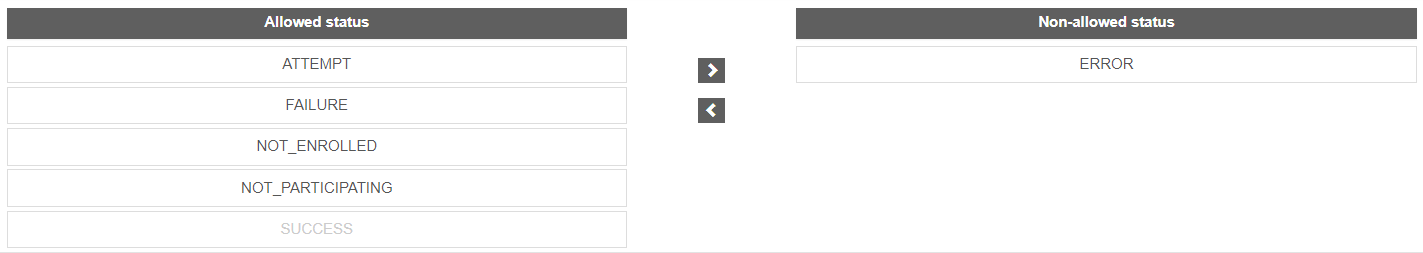

Screenshot of the settings screen for this rule

The Non-allowed status list is updated in the same manner as for the IP address reputation list.

This list only shows the 3-D Secure statuses that risk evaluation functions can filter. Notably, the CANCEL or BYPASS statuses are not on it. The distributor may impose 3-D Secure status acceptance rules upstream of fraud risk management checks. Therefore, some transactions having certain statuses of this list might be interrupted even before a fraud risk management check can be performed. For further details about 3-D Secure statuses, please refer to the holderAuthentStatus field in the data dictionary.

Other rules

The configuration is done in the same way for many rules:

You would like to configure the following rule:	Please refer to the settings of the following rule:
Commercial card (and card issuer country) Commercial card (and card issuing country)	Card issuer country However, please keep in mind that the Commercial card (and card country) rule is not eligible for the advanced configuration mode.
Lost and stolen cards (CB scheme cards) Virtual card	These rules require no specific configuration.

Configuring list rules

Populating lists

List rules require no specific configuration.

However, activating a list rule in a profile is not sufficient; you must also manage the list itself. To do so, three options exist:

adding elements in the list using Office Batch or
adding elements in the list using Office (M2M) SOAP or JSON or
using the Lists feeding tab.

Note: the options using Office (M2M) SOAP, Office (M2M) JSON or Office Batch are described in their respective user guides. This guide only exlpains the option using the fraud risk management interface.

Follow the procedure below to populate lists using the Merchant Extranet:

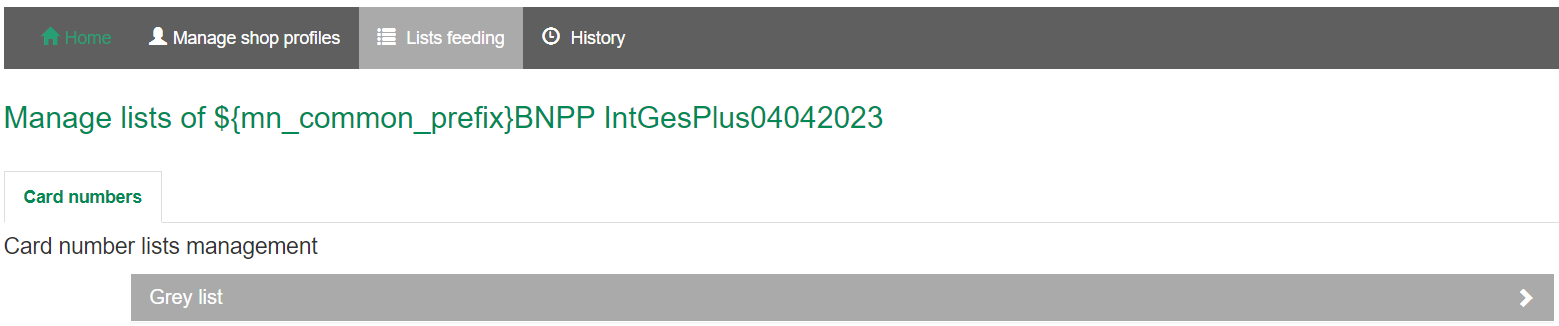

Click on the Lists feeding tab.

By accessing this section you gain access to the lists at your disposal: they vary according to the offer you have subscribed to. Please consult the list of rules for a complete list of existing list rules.

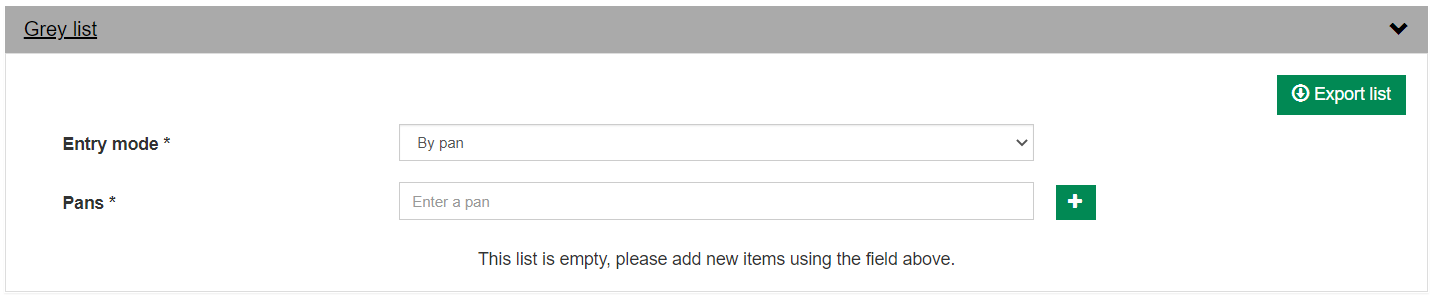

image showing the deployment of the blacklist

When editing a list, you can:

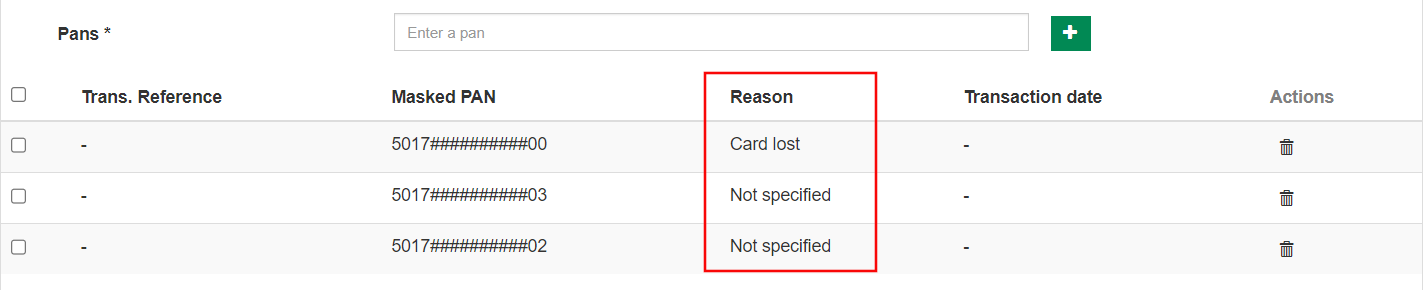

add a value to the list and specify a reason for the addition

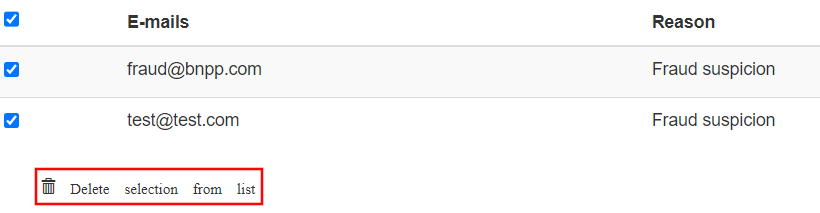

delete an entry from the list
or move an entry from a greylist to a blacklist

Adding a value to a list

You must enter the value you want to add to a list into the appropriate data field.

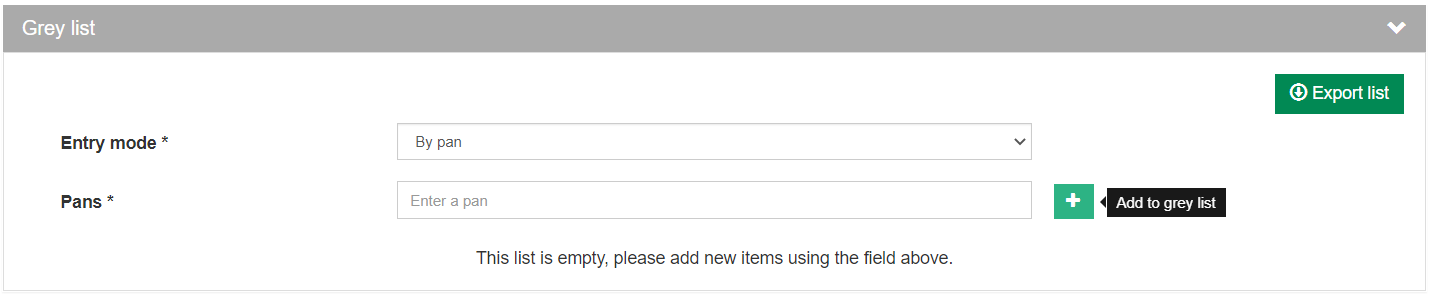

image showing the data field to be entered

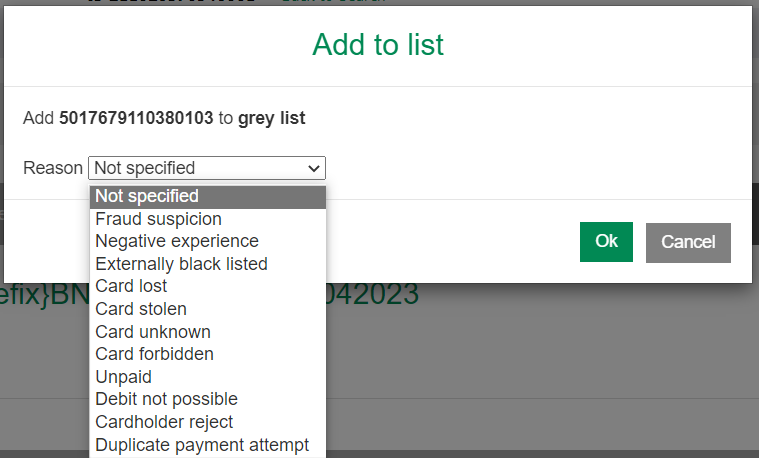

A click on the add to list button displays a contextual window that makes it possible to select a reason for adding the value.

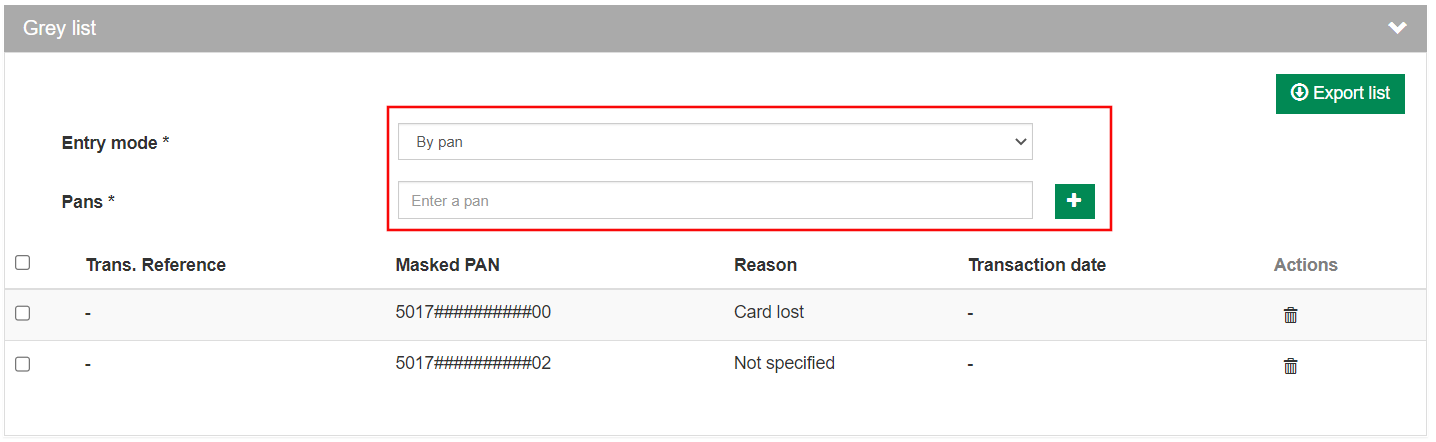

Adding a value to the card numbers list

The management of card numbers on blacklists, greylists or whitelists is different from the management of other lists.

You can add a card number:

using the transaction reference linked to the card number
using the card number

After selecting the entry mode using a combobox, you will be able to enter a token, a card number or a transaction reference on the screen.

Adding card numbers by transaction reference can be done by using either transaction references (Mercanet 2.0 primary key) or transaction identifiers and dates (Mercanet 1.0 primary key).

Adding card numbers by token can only be done if you have the "Merchant Token" option.

Selecting a reason to add an item to a list

Having clicked on the add button, select the reason in the popup window then click on OK, and the item will be added to the list.

Adding a reason may prove handy later (for example to add a given customer ID to a whitelist). The reasons can be chosen from predefined sets that suit each type of list. But you may also decide to keep the "Not specified" default version.

The reasons are displayed next to the items:

image showing the patterns displayed next to the elements

They are identical for greylists and blacklists. Here is a summary of these reasons:

List type	Reasons for whitelists	Reasons for blacklists and greylists
E-mail addresses	Unspecified VIP Trusted e-mail address B2B customer	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion Unknown e-mail address Non-payment Failed debit Chargeback Multiple payment attempts
IP addresses	Unspecified VIP B2B customer Trusted IP address	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion Unknown IP address Non-payment Failed debit Chargeback Multiple payment attempts
Postal codes	Unspecified Positive experience	Unspecified Fraud suspicion Negative experience Is on an external blacklist Unknown postal code General suspicion
Customer IDs	Unspecified VIP B2B customer Trusted customer ID Is part of a special action	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion Non-payment Failed debit Chargeback Multiple payment attempts
Names	Unspecified VIP B2B customer Trusted name	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion Non-payment Failed debit Chargeback Multiple payment attempts
Card numbers	Unspecified VIP B2B customer Trusted card Travel key card	Unspecified Fraud suspicion Negative experience Is on an external blacklist Lost card Stolen card Unknown card Prohibited card Non-payment Failed debit Chargeback Multiple payment attempts
Phone numbers	Unspecified VIP B2B customer Trusted phone number	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion Unknown phone number Non-payment Failed debit Chargeback Multiple payment attempts
BIN ranges	Unspecified Trusted BIN range	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion
BIC	Unspecified	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion
IBAN	Unspecified VIP B2B customer Trusted IBAN	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion Failed debit Multiple payment attempts
Mandates	Unspecified VIP B2B customer Trusted mandate ID	Unspecified Fraud suspicion Negative experience Is on an external blacklist General suspicion Failed debit Multiple payment attempts

Exporting a list

You can export a list into a CSV file by clicking on the export list button. This creates a file which contains all the items of the list and is automatically downloaded via browser.This creates a file which contains all the items of the list and is automatically downloaded via your browser.

For more details on the CSV file contents, please refer to 'Appendix list export file format'.

Deleting a value from the list

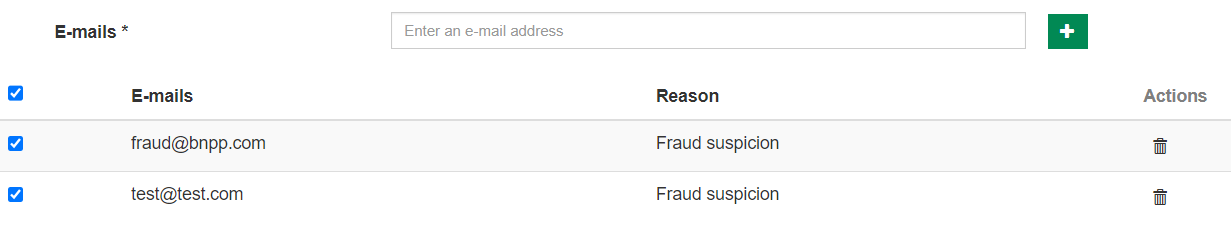

It is also possible to delete items from the list, e.g. if they are not valid any more or were added by mistake:

select one or more values to delete from the list by checking the boxes next to the appropriate items
then click on the Delete selected entries button.

To avoid deleting an item by mistake, you must click on Confirm in the confirmation window.

Moving a value

Every greylist offers the possibility to move a selected entry to the appropriate blacklist e.g. if the severity of a case increases. This spares you the effort to delete an appropriate entry from the greylist and to re-enter it on the blacklist. The procedure is as follows:

select one or more values to move from the greylist to the appropriate blacklist by checking the boxes next to the required items
then move them using the Move selected item to the blacklist button.

To avoid deleting an item by mistake, you must click on Yes in the confirmation window.

Attention: a value can only be on one list. For instance, the same item cannot be added to a greylist and a blacklist.

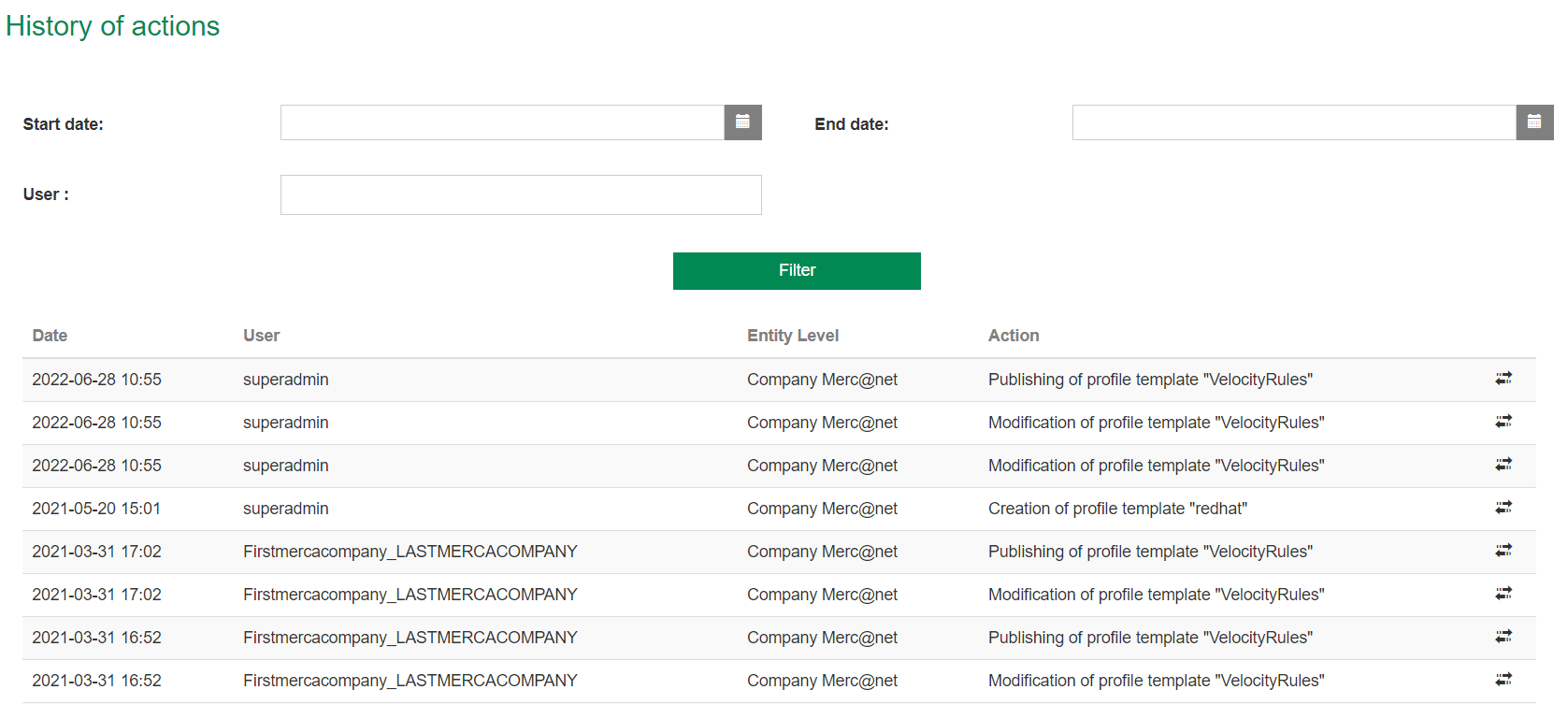

History of actions on the interface

A log of the modifications made through the interface is displayed in the History tab.

This section lists all the changes on your profiles and also the ones having an impact on your fraud configuration: publication of a template profile or the association to a shared group/list. Changes on the webshop’s lists (e-mail lists, name lists, etc.) are not logged.

Table of modifications

When you arrive on the modifications page, the table is not filtered and contains all the changes related to the webshop, from the most recent to the oldest.

On the top of the page, different criteria are displayed to filter the modification logs: a minimum date, a maximum date, a user name or a log type (merchant profile, template profile or association).

After clicking on the filter button, the application reloads the table with the filtered data.

Each line in the table shows the date on which the action was performed, the user who performed the action, the modified entity and a brief description of the action.

Click on the compare icon to compare the object state before and after the modification.

Details of the modifications

Merchant profile and profile template

After clicking on the icon, a popup displays, showing a comparison between the profile before and after the changes. By default, only the modifications are displayed, but it is possible to show the unchanged values also by clicking the Show unchanged values (entire profile details) checkbox.

The comparison is made up of three parts:

general information about the profile: name, means of payment, currency
list of decisive rules
list of informative rules

Modification on a rule

A colour code is used for rule modification:

Colour	Meaning
The rule name is in red and is preceded by the symbol.	The rule was removed from the profile.
The rule name is in green and is preceded by the symbol.	The rule was added to the profile.
The rule name is in orange and is preceded by the symbol.	The rule was moved in the profile, which means its mode has changed (from decisive to informative and vice versa) or that it is decisive and its execution rank has changed.
The rule name is in black.	The rule content has changed.
The rule name is in grey.	The rule has not changed (only visible when the proper checkbox is ticked).

For example:

Rule name and colour	Meaning
	The rule was not changed.
	The rule was added in third position in the execution order.
	The rule mode has changed from decisive to informative.
	The rule has moved in the execution order from 2nd position to 1st position.
	The rule mode has changed from decisive to informative with an execution order of 2.
	The rule was removed.
	The rule was not moved but its settings were changed.

Modification on a value

Colour codes are also applied on value modification:

Value	Meaning
Value in green.	New value.
Value in red and strikethrough text.	Former value.
Value in black.	Value unchanged.

In the case of a modification, the former value in red strikethrough text is followed by the new value in green.

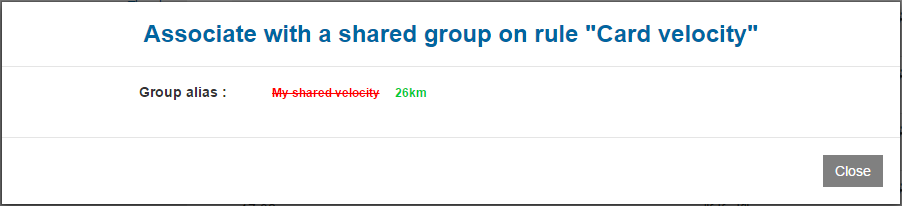

Group/list association

After clicking on the icon, a popup displays, showing the changes between the new group/list to which the eShop belongs and the former. So you will see the former in red strikethrough text and the new group in green :

picture showing the comparison between the old and the new group
